Products

Sterilizing Gas Ampoules

Model	Active Ingredient	Shield	Net Contents
AQ 5	%100	Nylon	5 g
AQ 11	%100	Nylon	11 g
AQ 15	%100	Nylon	15 g
AQ 20	%100	Nylon	20 g
AQ 22	%100	Nylon	22 g
AQ 24	%100	Nylon	24 g
AQ 30	%100	Nylon	30 g

% 80 less gas than the competition

With Axis's match load to cartridge method, you never have to worry about tanks of EtO. Axis Products offers cutting-edge technologies and expertise in sterilization with the only system that offers multi-load capability.

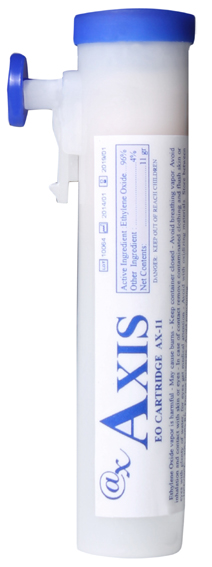

The new diffusion chamber provides extra protection to the operator in case of accidental activation. Its robust design and polyurethane body make the EO Gas cartridge one of the most reliable tools for releasing the ethylene oxide gas.

Operator safety is ensured by the double protection of the trigger via a plastic lock and a safety seal.

Model	Active Ingredent	Shield	Net Contents
AX 5	%100	Polyurethane	5 g
AX 11	%100	Polyurethane	11 g
AX 15	%100	Polyurethane	15 g
AX 20	%100	Polyurethane	20 g
AX 22	%100	Polyurethane	22 g
AX 24	%100	Polyurethane	24 g

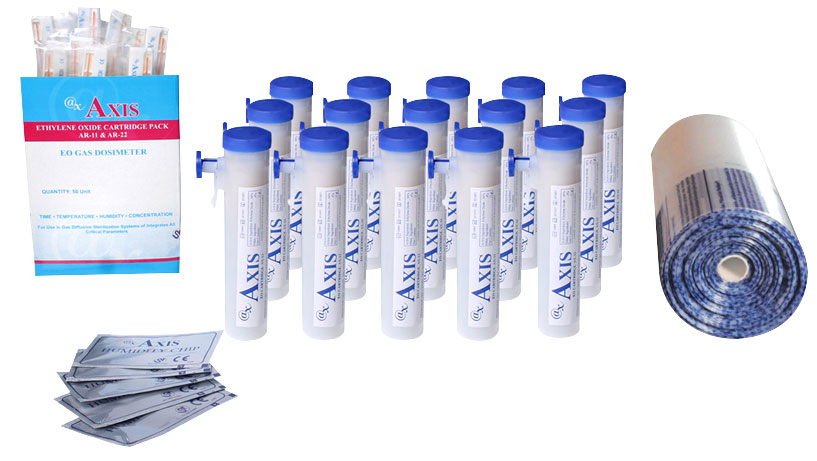

Cartridge Sets

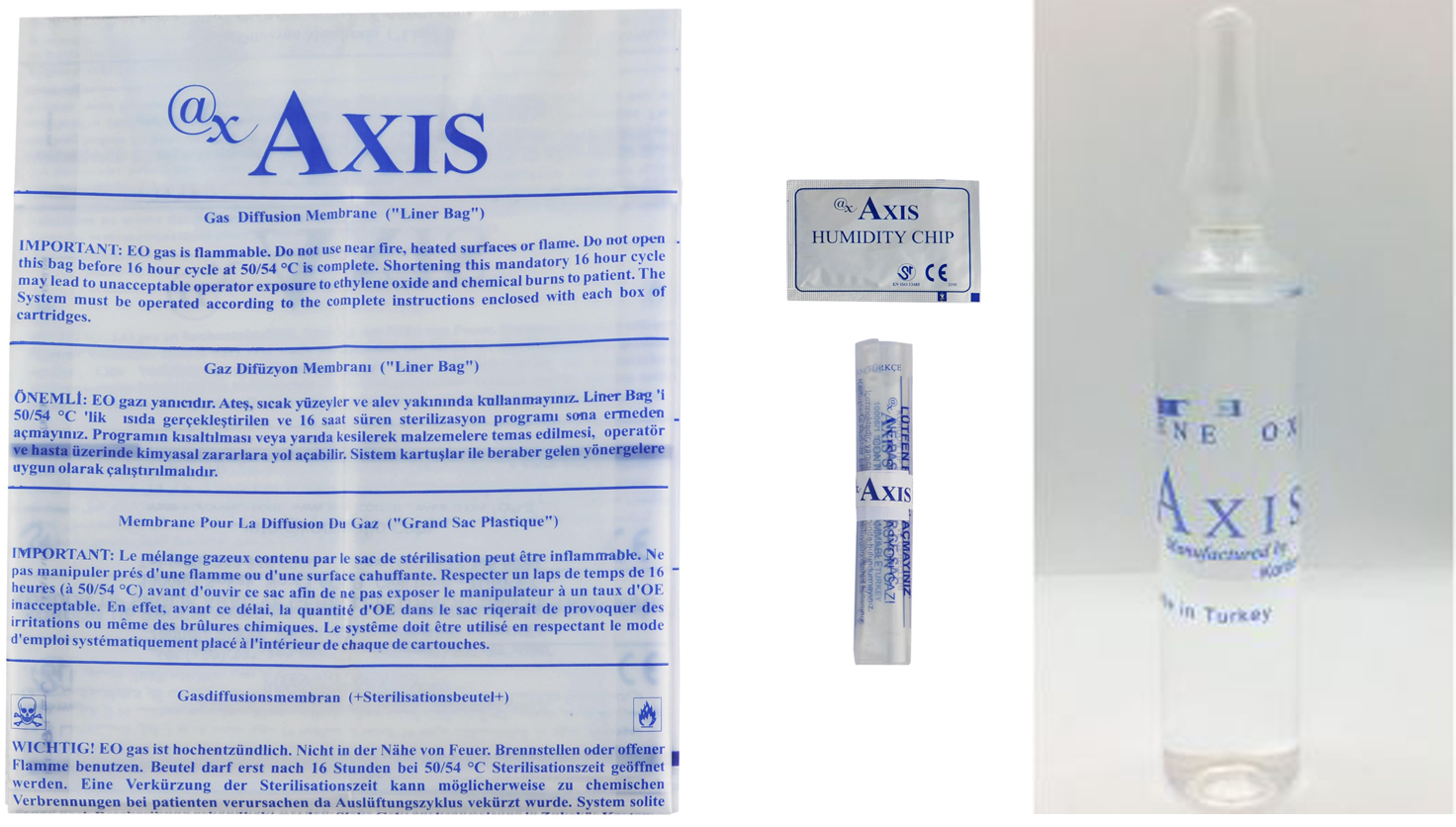

Putting whatever you wish to be sterilized into the Liner bag along with the Gas Cartridge, Humidity Chip, and Dosimeter and seal on any film sealing machine. When Liner Bag put in the sterilizer, press the button on the cartridge and the sterilization will begin.

Humidity chip comes in an aluminium package to prevent drying up.

The humidity chip consists of a wafer which has water and hydrophobic and water-permeable material which and function to prevent the damp inner wafer from directly contacting items to be sterilized during the gas sterilization process.

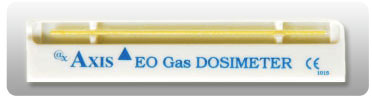

Dosimeters

Dosimeters integrators monitor the time, temperature and EO concentration, plus checks the presence of adequate water vapor levels (relative humidity) which is an important parameter of ETO sterilization.

The dosimeter color changes from yellow to blue till the pointer , indicates that the dosage of 750 mg/liter-hours has been achieved.

Model	Cartridge	Liner Bag	Humidity Chip	Dosimeter
AR 11	AX 11	22'' x 36''	+	+
AR 15	AX 15	22'' x 36''	+	+
AR 20	AX 20	22'' x 36''	+	+
AR 22	AX 22	22'' x 36''	+	+
AR 24	AX 24	22'' x 36''	+	+
ARQ 5	AQ 5	18'' x 24''	+	-
ARQ 11	AQ 11	22'' x 36''	+	-
ARQ 15	AQ 15	22'' x 36''	+	-
ARQ 20	AQ 20	22'' x 36''	+	-
ARQ 22	AQ 22	22'' x 36''	+	-
ARQ 24	AQ 24	22'' x 36''	+	-
